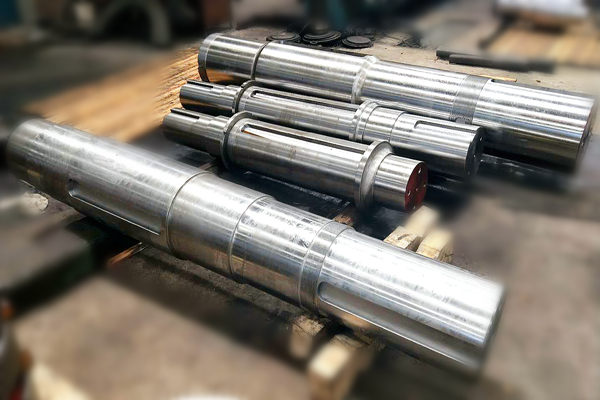

forging large shaft

forging large shaft

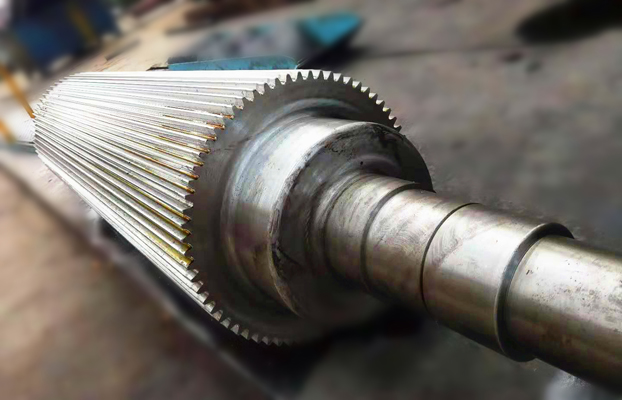

spline shaft output gear

spline shaft output gear

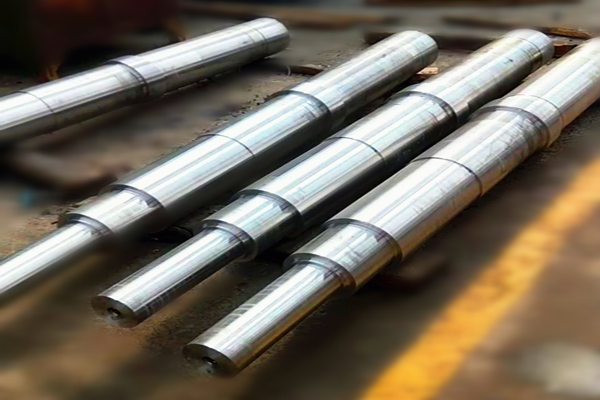

open die forging step shaft

open die forging step shaft

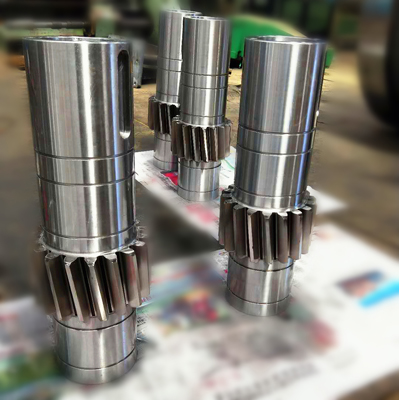

hollow shaft with tooth grinding

hollow shaft with tooth grinding

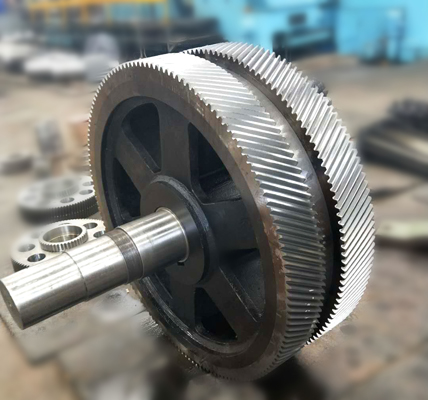

gearshaft assembly

gearshaft assembly

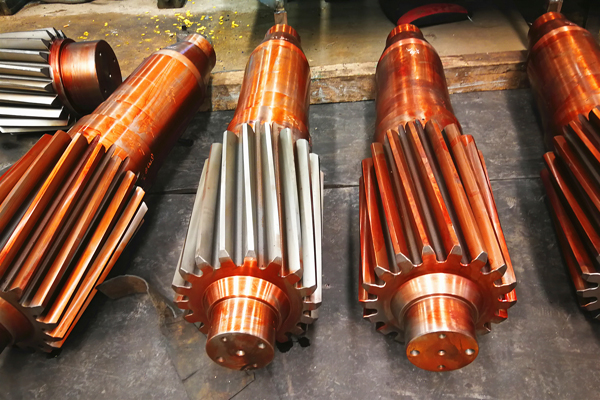

forging gearshaft

forging gearshaft

forging gearshaft

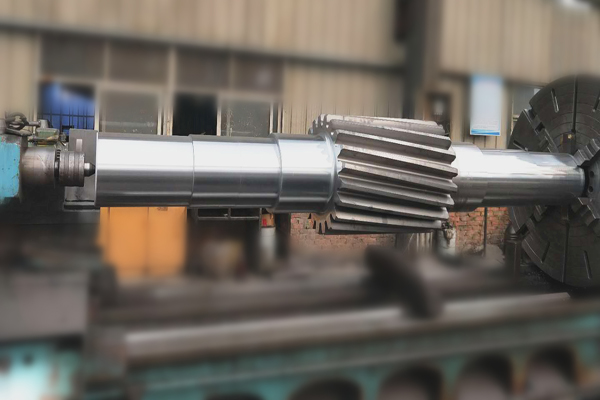

forged alloy steel gear shaft for ball mill

forged alloy steel gear shaft for ball mill

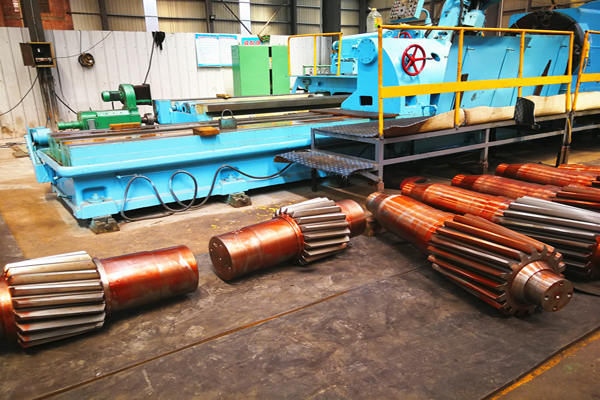

DIN42CrMo4 forging gearshaft

DIN42CrMo4 forging gearshaft

DIN42CrMo4 forging gearshaft

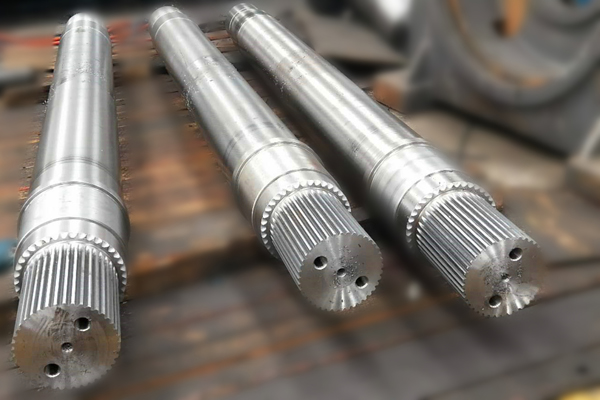

42CrMo spline shaft L=5000mm

42CrMo spline shaft L=5000mm

gearshaft gear grinding

gearshaft gear grinding

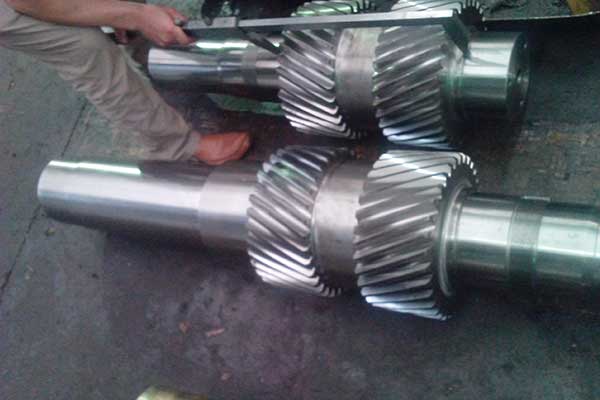

Herringbone-gearshaft

Herringbone-gearshaft2

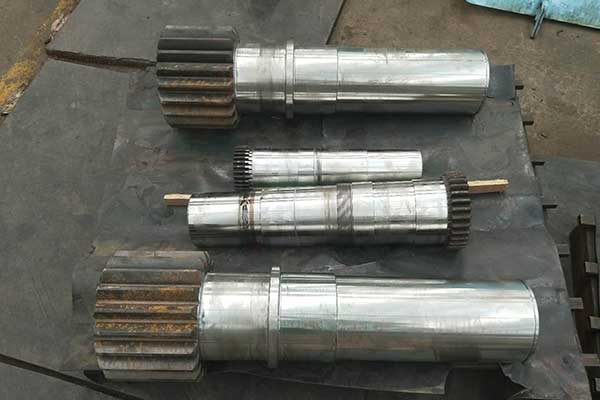

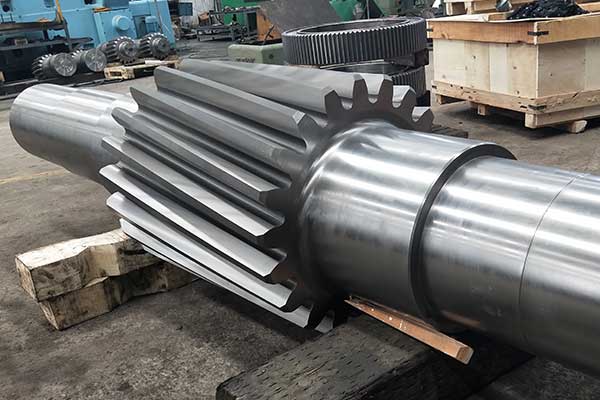

Gear-shaft

Gear-shaft

Shaft Forgings and Forged Shafts Manufacturers



The shaft is a cylindrical object worn in the middle of a bearing, wheel, or gear, which is mainly used to support transmission parts, transmit torque and bear loads.

As a leading forged shafts manufacturer, we have professional and advanced equipment to satisfy every customer that we can supply with forged steel shaft with max diameter of 2500mm and max length of 15000mm. In additional, we can manufacture gearshaft in mass with our advantaged large module gear hobbing machine, plus our strict production arrangements and follow-up to ensure that every order can be delivered on time, and when customers have an urgent order, we can arrange the production according to the customer’s demand date.

PRM can provide one-stop solution producing varieties of forging shaft from different types of materials.

.

Material for Gear and Shaft with QT

Material C Si Mn Cr Mo Ni S P AI Cu
35CrMo 0.32~0.4 0.17~0.37 0.3~0.7 0.8~1.1 0.15~0.25 <=0.03 <=0.035 0.035 <=0.03
42CrMo 0.38~0.45 0.17~0.37 0.5~0.8 0.9~1.2 0.15~0.25 <=0.03 <=0.035 0.035 <=0.03
40CrNiMo 0.37~0.44 0.17~0.37 0.5~0.8 0.6~0.9 0.15~0.25 1.25~1.65 <=0.025 <=0.025
40CrMnMo 0.37~0.45 0.17~0.37 0.9~1.2 0.9~1.2 0.2~0.3 <=0.035 0.035
30Cr2Ni2Mo 0.26~0.34 0.3~0.6 1.8~2.2 0.5~0.8 1.8~2.2
34CrNiMo6 0.3~0.38 <=0.4 0.5~0.8 1.3~1.7 0.15~0.3 1.3~1.7 <=0.035 0.035
38CrMoAI 0.35~0.42 0.2~0.45 0.3~0.6 1.35~1.65 0.15~0.25 <=0.03 <=0.035 <=0.035 0.7~1.1 <=0.03

Material for Gear and Shaft with Carburizing and quenching

Material C Si Mn Cr Mo Ni S P AI Cu
17CrNiMo6 0.14~0.19 0.15~0.4 0.4~0.6 1.5~1.8 0.25~0.35 1.4~1.7 <=0.035 <=0.035
20CrMnMo 0.17~0.23 0.17~0.37 0.9~1.2 1.1~1.4 0.2~0.3 <=0.03 <=0.035 <=0.035 <=0.03
20CrNi2MoA 0.17~0.23 0.15~0.4 0.4~0.7 0.35~0.6 0.2~0.3 1.6~2 <=0.02 <=0.02 <=0.03

With our forging supplier expertise, our Plant can forge shafts with in lot sizes and varities.  The forged shafts we produced including gearshaft, herringbone gearshaft, pinion shaft, hollow shaft, thread shaft, spline shaft, step shaft, wind turbine shaft, rotor shaft, worm shaft and etc.

Quick   details
Standard or Non-standard Non-standard
shape external
Module 1~40
Diameter 3500mm
Length 15000mm
Tooth profile spur, helical, herringbone, w/o teeth
Material Carbon steel, alloy steel
Processing forging, heat treatment, machining
Pressure angle 20
Accuracy class ISO5, 6, 7
Tooth surface roughness with grinding Ra0.8, Ra1.6
w/o grinding Ra3.2, Ra6.3
Defect control UT, MT,
Standard GB, EN, DIN, ASTM, GOST, JIS, ISO
Certification ISO9001
warranty: one year
MOQ 1 PC
Delivery Detail: 30~60 days

Advantages Of Forged Shaft Manufacturing

  • Continuous grain flow, improved microstructure
  • Reduced downtime because of premature failures
  • Increased service life
  • Greater strength & fatigue resistance as to operate at higher pressures and load weight
